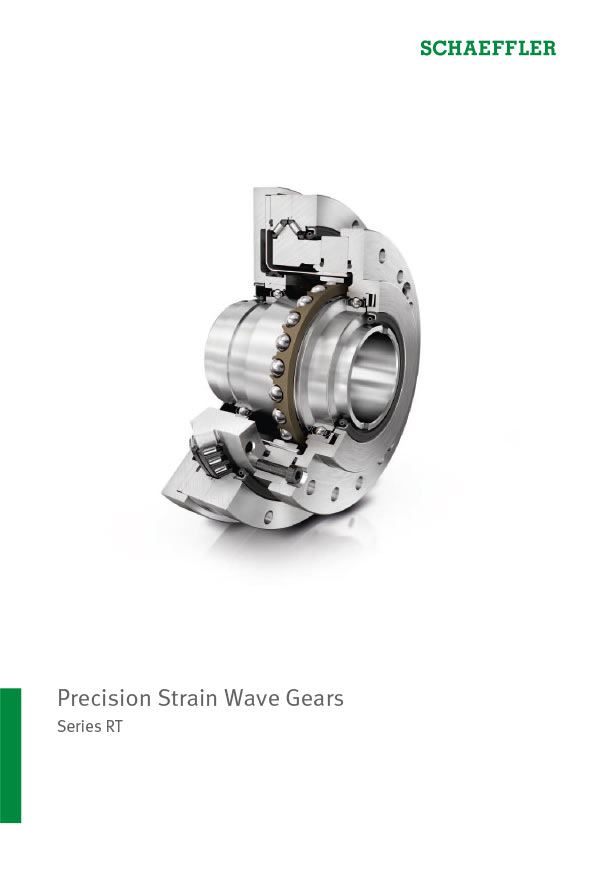

Precision Strain Wave Gears

Series RT

In drive systems intended for robots, machine tools and use in industrial automation, for example, gears are a key component that have a significant influence on positioning and repeat accuracy, service life and the dynamics of the overall solution.Increased precision, reduced cycle times and extended machine runtimes are of global importance for industrial automationacross all sectors.
In this publication, the precision strain wave gears of boththe High Torque RT1 and Standard Torque RT2 series are described in detail. These currently cover a maximum torque range of 18 Nm to 484 Nm. Both series have comparable sizes and variants.Precision strain wave gears of the High Torque RT1 series exceedthe Standard Torque RT2 series by an average of 30% in terms of torque and 40% in terms of service life. Precision strain wave gears of the Standard Torque RT2 series are characterised by an extensive portfolio of sizes, variants and gear reduction ratios. Precision strain wave gears of the High Torque RT1 series are also available withan integrated torque sensor as RT1-T, which does not introduce any additional elasticity into the drive train.

Media category: Technical Product InformationTPI 275
Date: 2022-10-17
Order number: TPI-275-en
Publisher: Schaeffler Technologies AG & Co. KG
Pages: 102
Language: English
